Videojet 1650 Continuous Inkjet Printer

Sorry, but the Videojet 1650 is no longer available – we recommend as an alternative product the Videojet 1280,1580 and 1880 which will fulfill your needs. If you need any support don’t hesitate to contact us.

CIJ Printer

The Videojet 1650 continuous inkjet printer is engineered for more demanding coding and marking applications where a combination of speed and throughput require a high utilisation solution.  In addition to delivering an Uptime Advantage, the 1650 provides advanced features to help reduce operator error and tools to help improve Overall Equipment Effectiveness (OEE).

Code Assurance features help eliminate common coding errors by helping your operators put the right code on the right product, time after time.  On-board Productivity Tools display details about both Printer Availability and Operational Availability, enabling a review of data to discover technical and operational causes of unplanned downtime.  This data is presented in a logical way to help identify the root cause of downtime, and empower operators to take corrective action and boost productivity and profits.

  • Specs
  • Benefits
  • Applications
  • Documents
  • Videos
SpecificationValue
Printheads1
InksDye Based
Maximum Lines of Print5
Maximum Line Speed(1)293 m/min (960 ft/min)
Environmental ProtectionIP65
Core Life (Maintenance Interval)Up to 14,000 hours
Umbilical Length3 m (9.8 ft) optional 6 m (19.6 ft)
Message Storage Capability250
Smart Cartridge™Included
Plug and Play Printhead ModulesIncluded
USBIncluded
CommunicationsEthernet (standard)
Clarisoft/Clarinet® via ethernet
Message management via USB
Positive Air / CleanFlow™Included
Expanded I/O Ports and Control#
Display (User Interface)CLARiTY® based 10.4 inch color touchscreen

# Optional

(1) Based upon single line, 10 characters per inch

Speed without compromising quality:

  • Dynamic Calibration™ adjusts jetting parameters automatically to help ensure high quality print
  • Print from 1 to 5 lines of text at high speeds:
    • Single line max speed = 293 m/min (960 ft/min)
    • Dual line max speed = 146 m/min (480 ft/min)
    • Tri-line max speed = 81 m/min (265 ft/min)

Engineered for extended runs; Uptime Advantage via:

  • CleanFlow™ technology resists ink buildup that can cause ordinary inkjet printers to shut down
  • Long run time between preventive maintenance; up to 14,000 hour core life
  • Internal pump means no external air, minimising potential for contaminants to enter ink stream
  • Auto cleaning printhead for fast start-ups even after extended shutdowns

No mess, no waste fluid delivery:

  • Make-up consumption as low as 2.4 ml/hour
  • Smart Cartridge™ fluid delivery system to virtually eliminate spills and help ensure the correct fluids are being used

On-board Code Assurance to help prevent coding mistakes:

  • Advanced software minimises and mistake-proofs operator inputs to the coding and marking process to help reduce errors
  • Operator inputs are governed by rules which simplifies choices via field prompts, drop-down menus, calendar displays and predefined formats to help ensure correct entries

Built-in Productivity tools to keep your lines operational:

  • Bright, 264 mm (10.4 in) touchscreen interface that provides real-time fluid levels, maintenance alerts, print jobs and other operational information
  • Instant fault information is displayed to get your printer and line running again – fast
  • Drill down into Printer Availability data to discover technical and operational causes of downtime, get to the root cause of downtime events and fix them for good

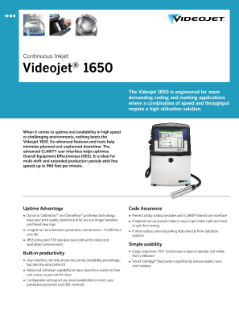

  • Brochures
  • Case Studies
  • Application Notes
Vidyard Thumbnail

THE PATENTED CLEANFLOW™ PRINTHEAD

With a positive flow of filtered air, the patented CleanFlow™ printhead design reduces ink buildup that can cause ordinary inkjet printers to shut down. So you get reliably clear and consistent codes even at the end of long production runs.


Vidyard Thumbnail

DYNAMIC CALIBRATION™

Dynamic Calibration™ applies some of the industry’s most sophisticated measurements and controls to adjust jetting parameters automatically. As ambient temperature and humidity change throughout the day and across the seasons, you can count on the same great print quality — only from Videojet.


Vidyard Thumbnail

CLARiTY™ FOR THE RIGHT CODE

Our Videojet 1550, 1650 and 1650 UHS printers feature the innovative CLARiTY™ interface, designed to enforce your coding rules and help operators reliably select the right jobs and enter the right data. Watch to learn how CLARiTY™ can help deliver The Right Code for your company.
