Sorry, but the Videojet 1860 is no longer available – we recommend as an alternative product the Videojet 1880 which will fulfill your needs. If you need any support don’t hesitate to contact us.
The Videojet® 1860 Inkjet Coding Machine
The Videojet 1860 Continuous Inkjet printer provides advanced warning of clogging and EHT trips. The new SIMPLICiTY™ interface greatly reduces operator interactions, and the optional VideojetConnect™ Remote Service minimises the need for on-site service calls.
The Videojet 1860 Continuous Inkjet printer helps your team reset the bar for performance. Predictive capabilities provide up to 8 hours advanced notification of the most common downtime generating faults under normal operating conditions. With the SIMPLICiTY™ interface, operating the 1860 will become second nature for your team. And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and troubleshoot potential issues in ways that other printers can’t.
- Specs
- Benefits
- Applications
- Documents
- Videos
| Value | |
| Printheads | 1 |
| Inks | Dye Based |
| Maximum Lines of Print | 5 |
| Maximum Line Speed (1) | 293 m/min (960 ft/min) |
| Environmental Protection | IP55, IP66 |
| Umbilical Length | 3 m (9.8 ft) optional 6 m (19.6 ft) |
| Message Storage Capability | More than 250 |
| Smart Cartridge™ | Included |
| Plug and Play Printhead Modules | Included |
| USB | Included |
| Communications | Ethernet LAN and RS-232 Serial (requires RS232 connector kit) |
| Positive Air / CleanFlow™ | Included |
| Expanded I/O Ports and Control | # |
| Display (User Interface) | CLARiTY® based 10.4 inch colour touchscreen |
# Optional
(1) Based upon single line, 10 characters per inch
Performance without surprises:
- Predictive capabilities provide up to 8 hours advanced notification of the most common downtime generating faults under normal operating conditions
- An industry-first ink build-up sensor provides advance warning of clogging and EHT trips
- Recover in minutes from unplanned interruptions with optional VideojetConnect™ Remote Service – minimising the need for on-site service calls
Natural fit in your line:
- Lower your cost of operation with up to 20% more efficient solvent usage*
- Withstands harsh washdown environments
- Hygienic design following industry guidelines
- Innovative printhead design improves speed by up to 20% in certain applications
- Integrate with factory systems using standard industry protocols with optional workflow modules * Compared to existing 1000 Line models
Minimal touch design:
- Significantly reduce operator error through advanced Code Assurance
- Access guided, embedded video instruction for routine printer tasks
- Complete your preventive maintenance with 3 easy-to-replace SmartCell™ components
- Access technical experts at the touch of a button through optional VideojetConnect™ Remote Service
Built-in evolution:
- Do more in the future by upgrading your printer with optional workflow modules
- Reduce unplanned downtime by accessing updates to predictive capabilities
- Operate more effectively with detailed runtime analytics and reporting, partnering with Videojet® Service to get better over time
- Brochures

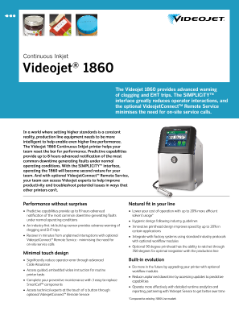

1860 Spec Sheet

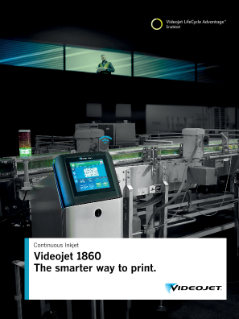

1860 Brochure

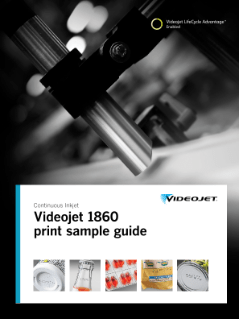

Videojet 1860 print sample guide
Videojet 1860 Overview
Performance without surprises
Minimal touch design
Natural fit on your line
